The 3D Quadcopter
The Latest Advancement In RC Flight

Collective Pitch 3D Quadcopter - Click Image For More Details


You know it had to arrive sooner or later... The 3D quadcopter.

By 3D, I mean a quadrotor that can sustain inverted flight by reversing the thrust of the propellers just as a collective pitch RC helicopter can reverse the thrust of the main rotor blades.

In other words, a quadcopter than can do many of the same aerobatic maneuvers a collective pitch RC helicopter can. They certainly don't look as pretty or sound nearly as good while doing them, but to each their own.

As an aerobatic single rotor collective pitch practice aid however, I can see some fairly important benefits in a 3D quadcopter; namely easier & less costly repairs along with an inherently more robust aircraft.


3D Quadcopter Thrust Reversal By Motor Direction Change

Motor direction change is likely going to be the most popular method because it costs less and is not as mechanically complex as changing the pitch angle of the propeller blades.

This method will also be popular because I'm sure there will be firmware updates on many popular multirotor stabilization systems in the coming years to allow for "3D conversions"; so people could upgrade their current quads to have 3D capability if they so choose.

There are basically three individual items that make the "direction change" method possible:

  1. Brushless Motors
  2. Reversing ESC's
  3. Dual Direction Propellers

Brushless motors are the main technology that makes this possible because they allow sudden and fast reversal with no harmful and accelerated wear & tear on the motor that all brushed motors would fail from in short order if they were constantly being subjected to direction changes.

Next up is the "reversing ESC". A reversing ESC does exactly what it says it does. It not only allows proportional motor speed control as all ESC's do, it also allows that speed control in both directions on either side of the "mid throttle stick position" (at least with a linear throttle curve as seen in the video below).

The last important ingredient are the propellers. All fixed pitch quadrotor propellers as you likely know are purpose designed to rotate in a specific direction (either clockwise or counter-clockwise). Yes they will produce negative thrust if you reverse them, but they're extremely inefficient when run in reverse.

Dual Direction Propellers3D Quadcopter Fixed Pitch Dual Direction Propellers

3D fixed pitch quadcopter propellers on the other hand are quite different.

They basically have two leading edges and are 100% symmetrical in design so they can be run in both directions (CW & CCW). There is an efficiency cost however with these "dual direction" props.

A propeller that is designed to run in one direction is much more efficient than a dual direction prop, perhaps as much as 30%. The physics of fluid dynamics can not be ignored I'm afraid.

So, assuming the proper firmware updates are available; all one would need to convert his/her quad to a 3D quadcopter are 4 reversing ESC's and 4 dual direction propellers.

In fact, Blade was the first to offer this 3D firmware update for their little Blade 200QX quadrotor. For the price, this one is hard to beat and anyone who already has a 200QX, it's definitely a very worthwhile (and free) firmware update to perform.

The growing number of big name commercially available fixed pitch 3D Quadcopters on the market at the time of writing (May 2016) are:

Blade 200QX 3D Quad with 3D Firmware & propeller updates

Click For Blade 200 QX Deals On eBay

Invertix 3D Quadcopter In Action Below



JR Ninja 400MR Doing The "3D Thing"

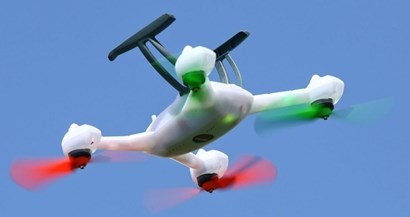

Blade 200QX Hovering InvertedBlade 200QX Hovering Inverted

Out of all of these fixed pitch 3D quadcopters, the clear winner here (at least to me) is the Blade 200QX.



It's very inexpensive not to mention so many people already have one and all they have to do is download the free firmware, install a set of 3D quad props for it (about $14 bucks), and are in inverted business. As a collective pitch inverted practice aid - it simply can't be beat!

Click For Blade 200 QX Deals On eBay

At any rate, as simple as the "directional motor change" method of quadrotor thrust reversal is, there is one fairly big problem with it...  Efficiency, or rather lack thereof.

There are two efficiency issues with the the direction change thrust reversal method. One was already mentioned - the dual direction propellers.

Next up is just how much power is used up (wasted) when an electric motor reverses direction - it's huge!

Flight times are Easily Reduced by 50% over that of the same size conventional fixed pitch quadcopter running on the same voltage & capacity LiPo battery pack.

The efficiency answer... pitch reversal!


3D Quadcopter Thrust Reversal By Propeller Pitch Change

For all you collective pitch RC helicopter pilots out there - this design/method of thrust reversal makes the most sense. In essence these are collective pitch quadcopters (CPMR - collective pitch multi rotor perhaps), and I predict a same/similar name is what they will be going by to differentiate them from what I see as the "lesser design" of direction change.

To understand the basic principle of how these work, just think of a quadrotor having a conventional variable pitch tail rotor running horizontally on each of the four quad booms/arms.

Variable Pitch Quadrotor Mechanics - Very similar to a standard variable pitch tail rotor.Variable Pitch Quadrotor Mechanics - Very similar to a standard variable pitch tail rotor.

This is by far the superior way of achieving thrust reversal (at least when it comes to efficiency). The draw back is it's more mechanically complex.

I also suspect it will be more difficult if not impossible to upgrade current mulit-rotor stabilization systems to variable pitch with firmware alone since there will be four servo outputs needed as well, separate from the ESC output/s.

My guess is a whole new line of variable or collective pitch multirotor stabilization systems will soon start being marketed by the big name players such as DJI (maybe the Naza MCP)...

As of April 2016, the three main commercially available collective pitch quadcopters on the market are:

  • StingRay 500 (designed by collective pitch RC helicopter 3D world champion, Curtis Youngblood)
  • The HUGE MantaRay (again by Curtis Youngblood)
  • The Hobby King Assault Reaper 500.

At double to an order of magnitude, the cost over the reversible type fixed pitch 3D quads, there is (at least right now) a huge price premium. Also, I feel they are all mechanically complicated with the belt drives despite despite the elegant layouts. This is also because I'm not a fan of belt drives period, so my opinion in this matter is somewhat biased unfortunately.

Stingray 500 Collective Pitch Qaudrotor's Elegant LayoutStingray 500 Collective Pitch Qaudrotor's Elegant Layout
MantaRay Collective Pitch 3D QuadcopterMantaRay Collective Pitch 3D Quadcopter

For the Hobby King shoppers, a less expensive ready to fly collective pitch 3D quadrotor called the Assault Reaper 500 is also available and it's very similar in design to the Stingray. What I like with this CP 3D quad is the belts are inside the arms/tubes over the external ones ones used on the Stingray. At $450 US beans which includes one of Hobby King's Orange 6 channel computerized radio's; the value is very good.

I personally want to see a collective pitch quadrotor with four conventional torque tube booms along with variable pitch type tail rotors on the ends. The booms would all attach to the main center body of the quad which would house one big main drive gear. This big main gear would be driving all four torque tubes; it in turn would be powered by a large single brushless motor.

The addition of a one-way bearing in a secondary main drive gear may even allow auto-rotation capabilities? Yes there is the issue of stripping gears going that route which I do appreciate the belt drive method would avoid, plus a small weight advantage. Still, it's something I would like to see on the market as another collective pitch quadrotor option. I can't see it costing nearly as much either seeing many current RC helicopter manufacturers could use their existing conventional tail booms & torque tube variable pitch tail rotor assemblies reducing both development & production costs.

Belt or torque tube, I really do like the fact there is only one motor and one ESC to deal with. For a larger size collective pitch quad, no question this design (both belt & torque tube) will become the popular norm in the years to come. Fuel powered alternatives (nitro, gas, turbine) would also be possible using this CP method just as they are with conventional collective pitch RC helicopters. They will also sound better doing away with the "swarm of bees". They will however never sound as good as a big pair of single rotor collective pitch rotor blades beating the air into humble submission.

The other variable pitch thrust reversal method I really like from a design and simplicity standpoint (for smaller size quads anyways), is the standard layout of using the conventional four brushless motors that are common place on all quads. However, the motor shafts are hollow allowing a pitch rod directly connected to a micro servo below to move the variable pitch propellers. The Aerospace Controls Lab at MIT has a great video showing this very design.

This in my humble opinion is the best overall thrust reversal design for small to mid sized 3D quadcopters, and what I would like to get. Bigger is better however so I wonder when the first commercially available central driven torque tube collective pitch quad will hit the market?

Until that time comes, the fixed pitch Blade 200QX and the collective pitch Assault Reaper 500 offer very good fun to dollar ratio value IMO ;-)
