What's An RC Helicopter Flight Controller & How Do They Work?

Nexus RC Helicopter Flight Controller

• What's an RC Helicopter flight controller?
• How do they work?
• How do they fly/feel?
• Are they easier to fly?
• What are the benefits?
• Are they good for a beginner?
• How to hook them up?
• Which best?

All great questions!

Before getting to the answers, just a little terminology clarification.

RC heli flight controllers are also known as electronic flybars, virtual flybars and most commonly flybarless systems. That link takes you to my original flybarless systems page which this page is essentially a copy of.

Why two pages? Well, with the term "flight controller" being used by more newbies getting into the hobby, likely because they are coming at it from a fixed-wing or quad-copter background, I get many more people to the website looking for RC heli flight controller information lately than I do for flybarless systems so a separate page with that terminology was required; both for my visitors and for the search engines.

Regardless of the terminology, they are all electronic stabilization systems using a flybarless rotor head.

Flybarless Rotor Head

Flying with a flybarless head also called an FBL rotor head on RC helicopters is nothing new for the larger scale crowd as many big scale birds or scale birds with multi bladed rotor heads have been around for years.

They were sensitive and difficult to control, not to mention the ballooning issues in fast forward flight (where the bird would pitch up if you didn’t hold in forward cyclic). It was a constant workload that took much of the joy out of flying.

Flybar Rotor Head

Most average people in the hobby (sport, general, semi scale, 3D, and certainly beginners) would have never even considered flying an RC helicopter with no rotor head stabilization, so we all flew with mechanical flybar stabilization.

Well, those days are long gone thanks once again to the huge improvements in electronic miniaturization and gyro / accelerometer technology.

Going flybarless is now a reality and has some wonderful benefits over the trusty old flybar for all types of RC helicopter flying.

With costs of RC helicopter flight controllers coming down all the time and the systems getting easier to configure and setup, RC heli flight control systems are now pretty much mandatory for the simple fact RC helicopter manufacturers have stopped producing flybared helicopters altogether.

Even the entry level/low cost micro segment have embraced this technology with all their single rotor micro sized helicopters now sporting electronic gyro stabilization.

What Does An RC Helicopter Flight Controller System Consist Of?

Bavarian Demon Axon RC Helicopter Flight Controller With Built In Gyro Sensors

Most RC helicopter flight controllers / FBL systems consist of the gyro sensors and the mixing/control unit/servo Bus (what your servo's plug into). Note, most flight controllers don't have built in receivers - more on that in a bit.

These can be combined in one unit as shown here with the Bavarian Demon's Axon electronic flybar system; or they can have the FBL sensor separated (remote) like on Mikado's VBAR NEO system.

Mikado VBAR Flight Controller With Remote Sensor

Combined systems generally give neater and easier installs, whereas systems with "remote FBL sensors" give you the flexibility to mount the sensor in various areas on-board the helicopter.

That said, RC helicopter flight controllers with remote sensor units have pretty much been phased out.

Today's flight controllers have much better vibration immune sensors in combination with better and faster processors, vibration ignoring/filtering algorithms, and internal sensor orientation selection (ie. you can mount the unit in any orientation on the aircraft).

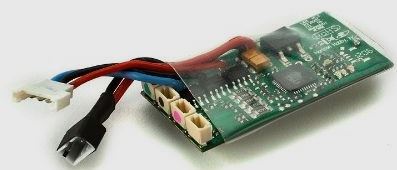

Micro Heli Flight Controller Combination Control Board

All micro sized helicopters with electronic stabilization will generally have a combination control unit that incorporates the receiver, ESC, BEC, and the stabilization gyros as shown here with the "combination" control board from a micro collective pitch helicopter.

The other required component of electronic stabilization when used on an RC helicopter is obviously the rotor head itself.

There are various designs of collective pitch flybarless rotor heads but the 3 main types I have listed below. The main thing to note on all examples is there is no flybar.

Washout Arm Rotor Head

First up is the non integrated washout type.

This design uses a washout (also know as a swash driver or swash follower) that is a stand alone unit (circled in green). It is clamped onto the mast to transmit rotational forces to the upper half of the swashplate to keep it correctly phased with the rotor head.

Next is the integrated washout type FBL head.

This design eliminates the washout/driver/follower base and places the washout arms directly on the lower part of the head block (circled in green).

The three advantages with this design over the separate washout is setup/head build is easier since you don't have to mess with washout height setting or phase angle.

Parts count is down slightly and the mast can usually be shortened a bit to bring the rotor disc down closer to the helicopter's center of mass.

In my opinion, from a purely mechanical workings point of view, this is the overall best design of all three.

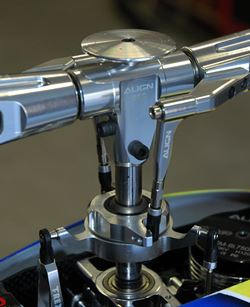

DFC Rotor Head

Last up is the DFC or Driverless head.

No green circle in this photo because the washout (swash driver) has been eliminated. I have an entire write-up on DFC / Driverless and encourage you to click on that link to read about DFC if you don't fully understand how it works and some issues to be aware of with it.

Best RC Helicopter Flight Controller?

Click above link to be taken to my "Best RC Helicopter Flight Controller page".

How Do RC Helicopter Flight Controllers Work?

First off to understand how an RC heli flight controller works you need to know how and what a flybar does.

My page here on flybars and head types covers that in detail, but a very simple explanation of flybar function is to add stabilization to the rotor disc by automatically changing the cyclic pitch angles of the rotor blades to help improve cyclic stability and make cyclic control much more manageable.

As the name suggests, flybarless (FBL) does away with the flybar and with the help of electronic stabilization systems, "virtually" replaces the flybar; this is why they are also called “virtual” or "electronic flybars".

We owe this to the scale crowd because they were really the ones to first experiment with electronic stabilization systems on their scale RC helicopters to make them look more scale of course.

I remember reading several articles a couple decades back when solid state heading lock gyros were first coming on the market – the Futaba GY240 to be exact.

More and more scale fliers using scale flybarless heads were now putting not only a tail gyro in their helicopters to detect and correct for unwanted yaw movement; but they were also installing two more gyros mounted vertically to pick up the pitching and rolling movement of the heli (the head gyros).

The aileron (cyclic roll) servo was plugged into the gyro that detected roll, and the elevator servo (cyclic pitch) was plugged into gyro that detected pitch. Now when the heli would pitch forward for example the gyro that detected pitching movement would detect that movement and then send a command to the elevator (cyclic pitch) servo to have it tilt the swash backwards to automatically bring the bird back into level flight.

3-Axis (Yaw, Pitch, Roll) RC Heli Flight Controller Sensors.

This is the basic principle of how all electronic flybars operate.

As seen in the picture to the right of an early style RC helicopter flight controller sensor that has the 3 solid state gyros oriented within the sensor just as if 3 separate tail gyros were used to detect yaw (tail), pitch, & roll (head).

The same cyclic pitch changes that the mechanical flybar would impart to the main rotor blades are now done by the two head gyro sensors that detect the pitch and roll attitude of the heli and then move the head servos to tilt the swash to make the precise and quick cyclic changes.

You can see this with any flybarless RC helicopter that uses a flight controller / electronic stabilization system and it is actually how you test to confirm the system is working properly. If you are holding the bird and tilt it forward, you will see the swashplate tilt backwards. If you tilt the bird left, the swash will tilt right.

PID Control Algorithms - The Secret Sauce

All RC helicopter flight controllers all use something called a PID control loop algorithm. This stands for "Proportional"  "Integral" & "Derivative". PID electronic control systems are all around us these days from heating systems to helicopters. Their purpose is to constantly measure for any error state off nominal and then send a correction of varying amplitude and time duration to correct for it.

I think you can appreciate how such a control algorithm can also be used to detect and correct for unwanted RC helicopter movement; just like a mechanical flybar; only with much more precision, speed, tuneability and even cross command corrections; meaning when the heli is experiencing one type of movement, the flight controller algorithm can automatically correct for additional unwanted movements & behaviors that will often manifest in something as dynamic as a helicopter.

This topic is covered in much more detail on the PID control loop page; but I at least wanted to mention PID here because it's the fundamental backbone of how all RC helicopter flight controllers function.

How To Connect An RC Helicopter Flight Controller To Your Receiver?

This is such a common question for those new to flybarless or just starting out in the hobby. Just like a standard tail gyro, most stand-alone RC heli flight control systems (ie. not the integrated ones used in micro-helicopters), have to be connected to a receiver (RX) on the helicopter to receive your movement commands from the radio (transmitter - TX).

The servos that control your helicopter (pitch, yaw, roll, collective) are then connected to the RC helicopter flight controller so it can move those servos as required to both stabilize the helicopter and impart your desired movement commands.

The RC helicopter flight controller is basically placed in "series" between the receiver and the servos.

There are 3 primary ways this is accomplished:

• Standard RX Connectivity Method (PWM - pulse width modulation)
• Remote/Satellite RX Connectivity Method (PPM - pulse position modulation)
• SRXL (serial protocol communication)

1. Standard RX Connectivity Wiring

Pictured above is a typical standard RX wiring connection. This is the most basic electronic stabilization connectivity method and is supported by most RC helicopter flight controllers; but it's likely going to become less & less common is my guess. A multi conductor wire harness consisting of at minimum 7 wires (your 5 control channels plus +/- power) is used to connect all the RX's output channels to the FBL's input channels as well as feed power back to the RX.

FBL System 10 Conductor Standard PWM Wiring Harness

The RX communicates with the flight controller through this multi conductor wiring harness using the same standard PWM (pulse width modulation) signal that it uses to communicate with servos (PWM is covered in detail on my servo page).

Each individual control channel output from the RX is connected to the flight controller input for that same control function.

An example would be Aileron-out on the RX to Aileron-in on the flight controller and so on for elevator, rudder, collective, gain, and perhaps throttle.

The advantage with the standard connectivity method is most RC helicopter flight controllers support PWM connectivity as do normal RC receivers so there is rarely any compatibility issues between any brand of RX or flight control system.

The main drawback is it's bulky requiring a full function larger RX along with a mass of wiring. Not the best option for smaller helicopters (450's and smaller), and impossible on micro sizes like the GooSky S1, S2, OMPHobby M1, M2 etc.

2. Satellite/Remote RX Connectivity Wiring

Using a small satellite (remote) receiver as shown above, is a very popular and convenient method used by many people who fly with Spektrum radio systems using DSM2/DSMX protocol.

One or two small satellite/remote receivers are used and plugged into the RC heli flight controller to transmit the commands from the radio by way of a small 3 wire conductor harness. One wire transmits the PPM (pulse position modulation) signals from the RX to the FBL unit, while the other two are used to power the satellite RX.

Almost all RC helicopter flight controllers on the market support Spektrum & JR satellite RX connectivity these days. The advantage is it's a very simple and elegant connection method, with very little weight or bulk.

The downside can be if you need more channels (such as in scale), you don't have them since most FBL units don't have more than one or two extra AUX channel outputs (if any). There is also the problem if you have an flight controller that has telemetry or some sort of forward programming (programming the FBL system from your radio). For those options to work, you need two way communication between the receiver & FBL system.

3. Serial RX Connectivity Wiring

Last up we have a serial communication connection which like the Satellite RX connectivity method uses a simple 3 or 4 conductor wire harness to communicate with the FBL controller, but it uses a serial communication bus/network.

The big advantage here is much more data can be transferred and can also be sent in both directions. This is getting to be the primary method many higher end FBL systems and serious pilots are utilizing since it's compact, light, elegant and powerful.

Popular RC radio system serial protocols that most good FBL systems support include: Align/FlySky iBus / Futaba SBUS / JR XBus (Mode B) / JR RJ-01 SMSS / Multiplex SRXL(V1+V2) / Jeti UDI EXBUS / Graupner SJ HOTT SUMD / Spektrum SRXL / Sum PPM serial signal (SPPM) / CRSF / ELRS.

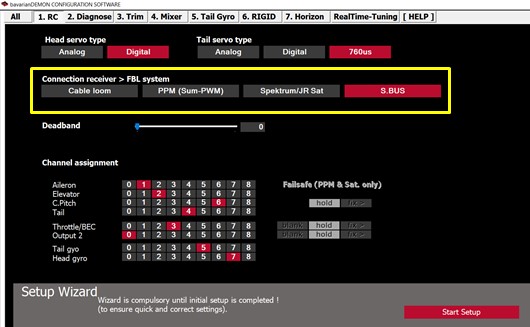

Setting RX Connection Type In Flight Controller Setup Programming

If you're curious how the flight controller system knows which RX connection method is used, it's a setting that you have to choose while setting up your RC heli flight control / flybarless system (pictured in the yellow box above).

How Does An RC Helicopter Flight Controller Feel While Flying?

One of the most frequently asked e-mail questions I get is "how does electronic heli stabilization feel or fly compared to a flybar".

Well it is quite hard to explain in words but the helicopter "feels" more locked in.

By that, I mean it tracks better while in flight like it's flying on an invisible set of rails.

Electronic Stabilization Rock Solid Stability

For example, with mechanical stabilization (using a flybar), when you pitch the nose forward to get the bird into a fast forward flight direction, if you center your forward cyclic stick the heli will gradually slow as the flybar slowly tracks back into a horizontal plane causing the main rotors to do the same.

With an electronic flybar, the bird will stay pitched forward in the exact same attitude after you center your cyclic and you don’t have to keep holding in as much forward cyclic pressure to keep it fixed at the same forward pitch angle.

This actually makes a lot of sense when you consider the same heading lock gyro technology that is used in the tail is also now being used for your cyclic. If you pitch the bird forward at a 30 degree angle – it will lock on that flight path more or less until you give a cyclic command to do different making cyclic stick counter corrections more pronounced.

Now that is a very simplified explanation of what it feels like. Depending on the setup and in many cases how the electronic stabilization is configured/programmed, you can vary the feeling quite a bit to the point they will mimic mechanical flybar response and delay fairly accurately.

For example "Decay" rate is a helicopter specific flight controller setting that you can adjust to adjust the length of time it takes for the swashplate to level back out, exactly the same way a mechanical flybar will slowly level the swashplate after a cyclic command.

Electronic stabilization feels more like a simulator heli in some respects – but again it depends on the specific heli flight controller you're using and how it is configured/programmed.

Hovering is less dramatic of a "change in feel". If you have the cyclic gains set right – the birds can hold very still and usually don't require the same level of cyclic correction from the pilot to remain perfectly steady in a hover as a flybar, but do require a little more pronounced cyclic counter corrections as I just mentioned. You still have to actively pilot them however, it is not hands off hovering by any means.

Honestly, (with a larger heli anyway), hovering either flybar or flybarless feels very similar and there is not too much difference in the feel.

A good quality & well setup flybar bird with fairly heavy paddles can be every bit as stable as the same heli with a flybarless system. I know I have had some perfectly setup and trimmed out flybared machines over the years that could hold a hands off hover for up to 10 seconds in zero wind conditions which is just as good or even better than any FBL heli I currently own.

Anyone who tells you a flybar heli is not as stable in a hover, simply has never experienced flying a top-end flybared machine. Again, that applies to larger RC helicotpers (say 500 and up) and in zero wind conditions. The smaller the heli and the windier it is, the more FBL systems help stabilize the hover -  no question.

Flybar vs Flybarless - Who's The Winner?

What Are The Benefits Of Flybarless?

Performance and efficiency are the primary ones. Without the added drag & inertia of a flybar and the paddles, not to mention a certain amount of extra weight in all the flybar head hardware, there is an increase in power efficiency & response performance.

For electric power, this also equates to slightly longer flight times. Overall flight speed is also up (again due to a cleaner head and less drag off the flybar). Only because of flybarless, are we seeing speed specific RC helicopters creeping up on the illusive 300 KPH (190 MPH) mark. Cyclic input is more immediate and less washed out feeling. The birds fly so locked in feeling and they track through the sky with amazing precision.

The other obvious advantage is the reduction in head hardware and parts count making the head build process faster/easier and crash damage both less costly, and in some cases less damaging. You are basically eliminating not only the flybar and paddles, but also the flybar mixing cage assembly, associated bearings, along with the washout base guide pins on the head and usually 4 pushrods.

In stark comparison, a pure Bell rotor head seems almost naked with only the head, the washout, and two single pushrods (for a two bladed rotor head) that go from the swashplate up to the two main blade holders.

Flybars also tend to eat up tail booms and canopies in most respectable crashes. Eliminating that long piece of steel with heavy paddles on each end twisting and flopping about like some angry ball & chain while your bird is frantically dancing around doing the "funky chicken" usually means less damage. You may come away with only a bent main shaft, head axle/feathering shaft, and fragmented rotor blades – if you’re lucky.

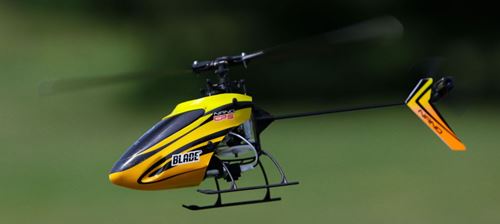

Micro Size FBL Blade Nano

Tiny micro collective pitch helis like the OMP M1 or Blade Nano, are only possible because of their electronic stabilization systems.

A complicated Bell/Hiller mixed flybar head and associated components would be so tiny and fragile, it would not be practical to use on a micro.

It's also doubtful the flybar could react fast enough on micro CP helicopters due to the very high head speeds they run at and low fly-bar mass, resulting at minimum in horrible toilet bowl effect. On top of that, micro flybarless systems are what keep such tiny collective pitch helis fairly predictable & stable; reacting and "feeling" more like larger RC helicopters.

What about looks? A flybarless head looks good – clean and simple.

Clean & Simple FBL Rotor Head

RC Helicopter Flight Controller Rescue Modes: Enter 6 & 9 Axis Sensors

The latest & greatest feature offered in a growing number of RC heli specific flight controllers are Rescue, Bailout, or Save modes which will level out the heli or put it back into an upright orientation when these modes are activated by the pilot.

Moreover, most heli flight controller systems feature an auto/self level mode that can make a collective pitch heli behave somewhat like a stable coaxial or quad rotor, while not allowing it to pitch or roll past a certain angle or can also be used a rescue or bail out function.

What is the technology behind these rescue & easy flying mode flybarless systems?

3 Sensor IMU Consists of a 3 Axis Gyro, Accelerometer & Magnetometer

Most use 6 or 9 axis position sensors over the more common stand alone 3 axis (yaw, pitch, & roll) gyro sensor.

This multi sensor system is correctly known as an IMU (internal measurement unit).

You will (unfortunately) often see them marketed as 6 or 9 gyros which is nothing more than marketing nonsense.

We do after all live in a 3 dimensional universe, and it's impossible to detect more than 3 axis of physical spacial movement along the yaw, pitch, and roll axis. The correct term they should be marketed by is 6 or 9 axis sensors or IMU's not gyros.

The 6 axis IMU will use a standard 3 axis MEMS gyro in combination with a 3 axis accelerometer. The gyro sensors detect rotational movement around each axis, while the accelerometer sensors can reference both acceleration and gravity pull around each axis to further stabilize the heli and level it out in a bail out or save activation. Drifting still will occur however as error rates build over time.

The 9 axis IMU as pictured above adds in three magnetometer sensors on each axis which reference magnetic fields to help with the time induced drifting problem.

Problem is, all those additional sensors require a good deal more processing power as the algorithms become much more complicated; so there are trade offs to number of sensors, performance, and of course costs.

Bailout/rescue setup is also fairly complicated on most programmable FBL systems with parameters such as maximum deviation angles, gains, right-side-up correction vs inverted, and amount of collective pitch introduction & for how long in both orientations so altitude is not lost during a "save".

In other words, you have to be a pretty good CP pilot to properly setup most rescue/bailout/save flight control units even more so than the already fairly complicated process of programming & setting up a standard 3 axis gyro flight control system.

What About FBL Downsides / Disadvantages?

Nope, nothing is perfect and a virtual flybar is no exception.

1. Cost (not really)

Cost was initially the biggest one (talking regular size birds here, not micros), but the differences in prices came down quickly. In fact, both versions (flybar & flybarless) are pretty much on par with each other so cost is now more or less a moot factor.

2. Increased Servo Demands

You will however need good high quality, high speed, and high torque digital servos on most flybarless RC helicopters. Remember, the same heading hold gyro technology that is used in the tail rotor gyro is now being used with your cyclic/collective servos and therefore for the entire system to function correctly, it requires fast response times.

If you recall from the flybar page I linked to earlier, one of the other important functions of the flybar is to take some of the load off the swashplate servos. With no flybar assistance, the servos are doing 100% of the workload to move the main rotors blades so they have to be powerful enough.

In addition to that, the servos are not only working harder, they are also working more. They are now responsible for all the little movement corrections to stabilize the helicopter that the mechanical flybar used to do.

Most intermediate to advanced RC heli pilots will already be using good strong & fairly fast digital servos on our swashplates, but definitely double check the specs on your RC helicopter and flight control system to make sure your servos meet the speed and torque requirements, not to mention the higher power loads these servos will be pulling. This is also why long lived brushless digital servos are now becoming very popular with many RC heli hobbyists as they are very well suited to the high electronic stabilization workload (on larger RC helicopters anyway).

3. RC Heli Flight Controller Setup & Tuning

Setup can and usually is more complicated on a flybarless RC helicopter compared to a flybared one - no question!

For a little background on this topic, my very first RC helicopter flight controller was a HeliCommand Rigid flybarless system. I used it in my Bergen Intrepid turbine helicopter and it was a nightmare to setup correctly for my first introduction to electronic stabilization.

It literally took me months of experimenting to get it where I somewhat liked how it responded and felt. Thankfully, the setup wizards have improved a great deal over the past two decades and are getting easier to configure and use. Factory out of the box settings are also generally much better now as well, and you may not even have to mess with them.

4. Reliability

This was my main concern with electronic stabilization. Mechanical flybars have been around for years and are proven. Sure there are more mechanical moving parts that could loosen, wear, or even come flying off the bird if you are not looking after things. However, they would almost always give you warning signs when something was worn out and rarely would it cause a total loss of control unless you ignored it for a few more flights.

Mechanical Flybars are for the lack of a better term - more or less goof proof.

Electronics on the other hand... They can fail or hiccup due to a poor connection, low voltage, bad solder joint, failed component, loose gyro sensor, etc.  Again, not something to dwell on and face it, when was the last time one of your tail gyros failed in mid air? That is the question I ask myself when I’m looking for reliability reassurance as I spool up.

UPDATE: In the past 16 years now of flying RC helicopters with electronic stabilization, I have yet to have a flight controller related crash. I have certainly experienced some funny & weird stabilization characteristics, stabilization glitches, poor programming setup/tuning on my part, and a firmware download blunder that almost drove one of my birds tail first into the ground (that was certainly a change of underwear moment); but no all out in flight failures. I guess the reliability fear can now be put to rest (knock on wood).

Lastly (as I just touched on causing my underwear change) there are firmware/software updates. If you really hate performing software updates on stuff, electronic stabilization may not be for you (at least with the more advanced higher end systems).

It seems updates are as much part of RC flight controllers these days as is correct setup. The nice thing is with the internet at our fingertips, there are generally many written and video tutorials on the updates to at least point you in the right direction.

In recent years, these update hassles are becoming less of an issue because manufacturers have got a good handle on things now. Remember, this was cutting edge technology 16 years ago; so much has been learned in that time frame.

Should A Beginner Get A Flybarless RC Helicopter?

Since flybared helicopters have gone the way of the dinosaur, this question is no longer relevant.

It's now a question of which flybarless & flight controller system is best suited for a beginner.

Setup as I said can be more difficult & involved seeing that not only do you have to understand the programming/adjustment of the RC helicopter flight controller, but on top of that, most require that you are able to at least hover and fly some simple circuits to tune them correctly. Impossible to do that if you haven't learned to fly yet!

If you have someone with FBL experience to help you out or are getting one on one lessons from an instructor who could setup the system & gains properly, then that would certainly be okay and is a great/best option.

Ready to fly helicopters that come with the flight controller already programmed and setup are another OKAY beginner option.

To really put this "difficult setup" issue in perspective, think back to simple tail gyro setup. This alone can be very difficult for a newbie to grasp and get their head around - yes?

Electronic stabilization essentially adds two more gyros to the mix and anywhere from a few to well over a few dozen other parameters to set correctly - much of it all abstract. Mechanical setup has to be nearly perfect as well. In short, it's less forgiving to less than perfect setup than a mechanical flybar in most cases.

The learning curve for a beginner getting into collective pitch is already steep, some RC heli flight controller systems can push that curve to near vertical! Just keep all that in mind when deciding between flight controller systems as some are much easier to configure & program than others.

My Swashplate Setup, Levelling, & FBL Configuration eBook goes over much of RC helicopter flight controller setup & tuning, so if you can't get any help locally, you may be interested in it.

It not only will help you out with the setup & tuning, it shows you what's involved so you'll have a good idea before even getting your flybarless helicopter or flight controller.

Again, if you wish to learn more about specific RC helicopter flight control systems and which are easier for beginners to start with, I cover that on my "Best Flybarless / Flight Controller" page.

---
